OptiX RTN 320 & RTN 320F
Original price was: $836.33.$777.77Current price is: $777.77.
7% Off
20 in stock
Description

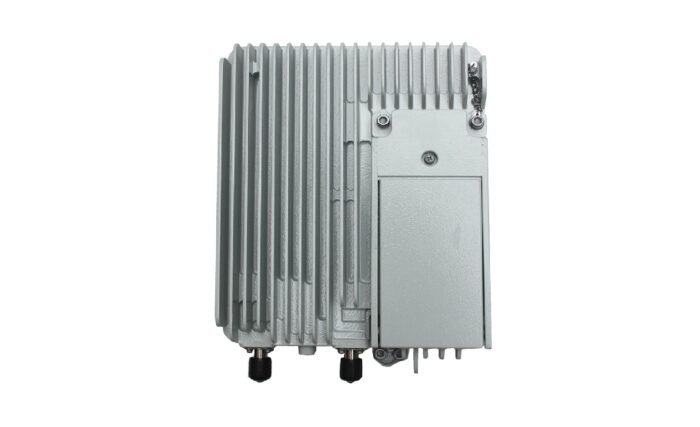

The integrated RTN 320 is compact radio transmission equipment that integrates all of its functions into an outdoor chassis.

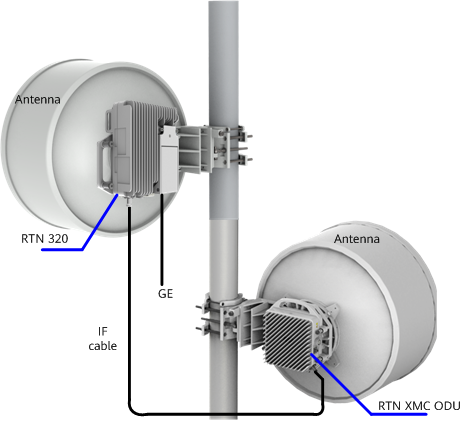

The integrated RTN 320 integrates a baseband signal processing module and an RF processing module (referred to as integrated ODU), and can be connected to an extended ODU through an IF port to provide one more microwave link. In this manner, two microwave links are available.
The RTN 320 provides such functions as service access, multiplexing, IF processing, and system control and communication. The integrated ODU and extended ODU perform frequency conversion and power amplification for signals.
| SLGMSITE05 | Optix RTN 320F OAU 2F (DC) with separate mounting bracket |
| SLG2DMD4D01 | OptiX RTN 320 2 * GE (RJ45)+2 * 10GE (SFP+)+2 intermediate frequency unit OAU2F module (-48VDC) |
| SLGMSITE07 | Optix RTN 320F OAU 2F (P&E) with independent mounting bracket |
| SLG2DMD4P01 | OptiX RTN 320 2*GE（RJ45）+2*10GE（SFP+）+2中心OAU2F（P&E） |
| PI-ACB20 | OptiX RTN,PI-AC B20 Power Combiner |
| PI-DC B22 | OptiX RTN,PI-DC B22,power injector |
| PI-DCA10 | OptiX RTN, PI-DC A10 power combiner |
| SLESSFPK01 | Single mode optical module kit (For ge or 1.25g CPRI) 10KM |
| OSV002N01 | Optical transceiver integrated module – SFP+-1310nm-6.144G-8.4dBm-0.5dBm-13.8dBm-LC-Single mode-2km |
| OSX1D4N01 | Optical transceiver integrated module – SFP+-1310nm-9.8G-8.2dBm-0.5dBm-10.3dBm-LC-Single mode-1.4km |
| OSX010N09 | Transceiver integrated optical module, SFP+, 1310nm, 10.3125Gb/s, -8.2~0.5dBm, -14.4dBm, LC, SM, 10km |
| OSV010N01 | Optical transceiver integrated module – SFP+-1310nm-6.144G-8.4dBm-0.5dBm-13.8dBm-LC-Single mode-10km |
| OSV010N03 | Optical Transceiver,SFP+,1310nm,9.8G,-8.2dBm~+0.5dBm,-10.3dBm,LC,SM,1.4km |
| SLGBASV1R22 | RTN 320/320F Basic Software Package V100R022 (per host) |
| SL6S000AMF01 | AM Function License |
| LSL91588V204 | MW Access node 1588V2 function (per subrack) |
| LSL9BDAC01 | Bandwidth Accelerator Function Control License |
| LSL9RLAGL1 | L1 LAG function control license for air port |
| SLAS1024QAM1 | 1024QAM License (per IF) |
| SLF1024QAMUP01 | 1024QAM Upgrade to 2048QAM Modulation Function(Per IF) |
| SLF2048QAMUP01 | 2048QAM Upgrade to 4096QAM Modulation Function(Per IF) |
| LSL98192S02 | 4096QAM Upgrade to 8192QAM Modulation Function(Per IF) |
| LSL9GEPS0R | RTU-GE ports (per port) |
| LSL9GEXS0R | RTU-10GE ports (per port) |
| LSL92IFS0R | RTU-MW Access node second intermediate frequency port (per subrack) |
| LSL9XANS0R | RTU-XPIC MW Access node (per IF&RF) |
| LSL9CARS01 | RTU carrier aggregation function (per ODU) |
| SLGSWUP01 | Software Release Entitlement(Per Host,R(N)->R(N+1) |
| LSL9NMSS00 | NMS Enhance Function (L2 DCN and SNMP GET/SET)(Per Subrack) |
| LSL9MPLS00 | MPLS/MPLS-TP Function (Per Subrack) |
| LSL9ERPSP1 | ERPS Protection License |
| LSL9TPAS00 | MW TP-Assist Function (Per Subrack) |
| LSL9WRED01 | WRED(Weighted Random Early Detection) QoS Function(Per Subrack) |
| LSL9HQOS01 | Hierarchical QOS Function (Per Subrack) |
| SLGBANDNT01 | Bandwidth Notification Function License |
| LSL9AESEN01 | AES Encryption Function (Per IF) |
| LSL9050S0R | RTU link transmission capacity 50M |
| LSL9200S0R | RTU-Link Transmission Capacity 200M |
| LSL9400S0R | RTU-Link Transmission Capacity 400M |
| LSL9500S0R | RTU link transmission capacity 500M |
| LSL9600S0R | RTU-Link Transmission Capacity 600M |
| LSL91K0S0R | RTU-Link Transmission Capacity 1000M |
| LSL9U1HS00 | RTU-Upgrade 100M |
| LSL9U2HS00 | RTU-Upgrade 200M |
| FDLCUPC43 | Fiber optic cable assembly – DLC/UPC-DLC/UPC-single mode-1m-2-core -0.03m/0.03m/GYFJH-2G.657A2-7.0mm-2mm-LSZH armored branch |
| FDLCUPC05 | Fiber optic cable assembly – DLC/UPC-DLC/UPC-single mode-50m-2-core -0.03m/0.34m-GYFJH-2G.657A2-7.0mm-2mm-LSZH armored branch |
| RFCABLE01 | RF cable -1m – (N50 straight male XVI) – (COAX50-7.6/4.8 black) – (N50 straight male XVI) |
| C2586BK01 | Power cord -600V-UL2586-2x12AWG black (2-core: blue, black) – D-shielded outdoor cable – UL (unit: meters) |
| SLGPKG01 | Outdoor OAU-2F module installation accessories package |
| IFODU5DX502 | XMC-5D Special Installation Auxiliary Material Package (5D) |
| SLGFIXPART05 | Assembly parts |
| STWICABSFTP5 | Symmetric twisted pair cable -100ohm-SFTP CAT5E-0.53mm-24AWG-4 pair black outdoor cable |
| C25ELECBK | Power Cord-300V/500V-60227 IEC 53 (RVV) -3×1.5mm ^ 2-Black (3-core: brown, blue, yellow/green) -19.5A – Outdoor Cable-CCC, CE (unit: meters) |
| IFODU-5D01 | IF/ODU installation accessory package (5D) |
| SLGFIXPART02 | OAU adapter – XMC-3 13G~38G |
| FEEDERCLB03 | Antenna feeder grounding clip – cable lightning protection grounding clip – clamp copper sheet (cable tie fastening) – U-type grounding clip – adapted to 3.3-16 square shielded cable |
| EWPTAPE01 | Adhesive tape DKBA0.480.0497 waterproof tape -50mm * 1.65mm * 3.0m |
Additional information
| Features | Optix RTN 320F OAU 2F (DC) with separate mounting bracket;OptiX RTN 320 2 * GE (RJ45)+2 * 10GE (SFP+)+2 intermediate frequency unit OAU2F module (-48VDC) |
|---|---|
| Body Type | new product |
