Description

The RTN510 is a sub-6G microwave transmission system developed by Huawei. It provides a low-cost PtP or PtMP solution in the context of line of sight (LOS) or non-line of sight (NLOS).

System Components

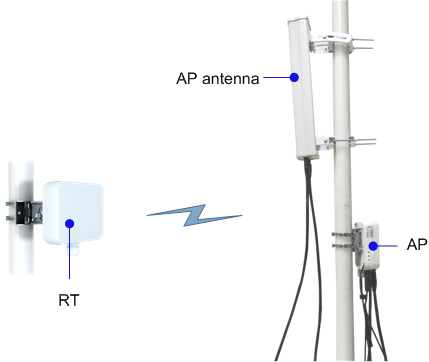

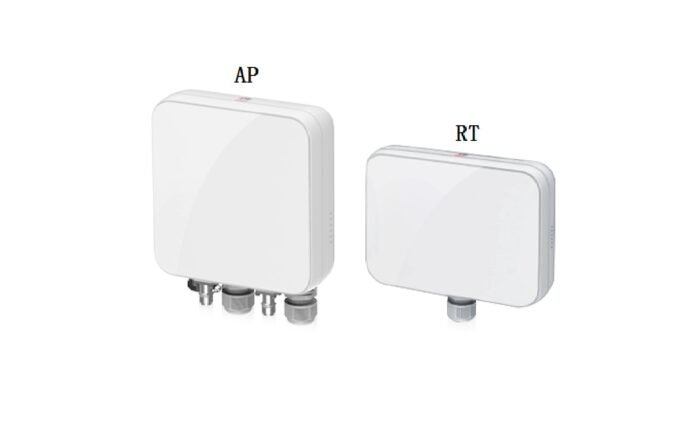

The RTN510 system consists of the access point (AP) and the remote terminal (RT). The RT is a highly-integrated device using an internal antenna. It receives services from terminals and transmits them to the AP. The AP uses an external antenna. It aggregates services from multiple RTs and transmits them to the upper-layer network.

The RT has two hardware types. One supports only one GE electrical port and the other supports two GE electrical ports. If there is no need to differentiate the two types, they are referred to as RT in a unified manner. If they need to be differentiated, the former is referred to as RT and the latter is referred to as RT II.

Typical Network Application

The RTN510 delivers low-cost, large-bandwidth, and highly reliable video links in the video information site solution.

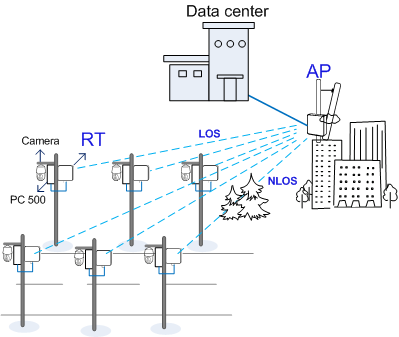

The PowerCube 500 (PC 500), which is installed at the camera terminal, supplies power to the RT. The RT is used for backhaul of service signals, such as video signals. The AP aggregates service signals from multiple RTs and backhauls them to the control device, thereby achieving multipoint surveillance.

The RT II is mainly used for video backhaul.

IDU
SLM1DM31	RTN510 microwave, 4.91-5.97GHz, AP, including installation accessories
F0520000AMA	RTN510 microwave, 4.91-5.97GHz, AP, including installation accessories
SLM2DS21	RTN510 microwave, 4.91-5.97GHz, RT II, 2GE port, integrated antenna, including installation accessories
W4353	RTN510 microwave, 4.91-5.97GHz, RT II, 2GE port, integrated antenna, including installation accessories
SFP and  Board
SLESSFPK01	Single mode optical module kit (For ge or 1.25g CPRI) 10KM
PI-AC B22	OptiX RTN, PI-AC B22 Power Synthesizer
PI-DC B22	OptiX RTN, PI-DC B22, power injector
PI-DCA10	OptiX RTN, PI-DC A10 power combiner
Antenna Unit
AS6D06HSNS	RTN510 microwave fan-shaped antenna bipolar N with bracket -4.9~5.97GHz, 16.5dBi
AS6D03SSN	Microwave directional antenna bipolar AS6D03SSN, with bracket -4.9~5.97GHz, 22dB
Value-Added Function
SLMPTPFS01	RTN510 PTP function enables RTU (per antenna)
	Includes RT capacity license and AES encryption function
SLML40MS01	RTN510 Microwave Basic Capacity License (maximum 40M) (per RT)
SLMULIMS01	RTN510 Microwave Expansion Capacity License (Above 40M) (per RT)
SLMAESES01	IRTN510AES customer addition function (per RT)
Installation Materials
E00DKBA04	Pole installation component – suitable for installing pole with a diameter of 114-381mm
STWICABSUTP1	Symmetric twisted pair cable -100ohm-UTP CAT5E-0.51mm-24AWG-4 pair black outdoor cable, double-layer sheath (unit: meters)
STWICABSFTP5	Symmetric twisted pair cable -100ohm-SFTP CAT5E-0.53mm-24AWG-4 pair black outdoor cable (unit: meters)
CPACH0301	Standard power cord – China AC 250V10A-3.0mm – (PI DC) – (227IEC53-1.0 ^ 2 (3C)) – (C13)
C0CC4P006	Traditional signal cable -6m – (Ethernet port 8-bit – Ⅰ) – (CC4P0.5 black) – (Ethernet port 8-bit – Ⅰ)
